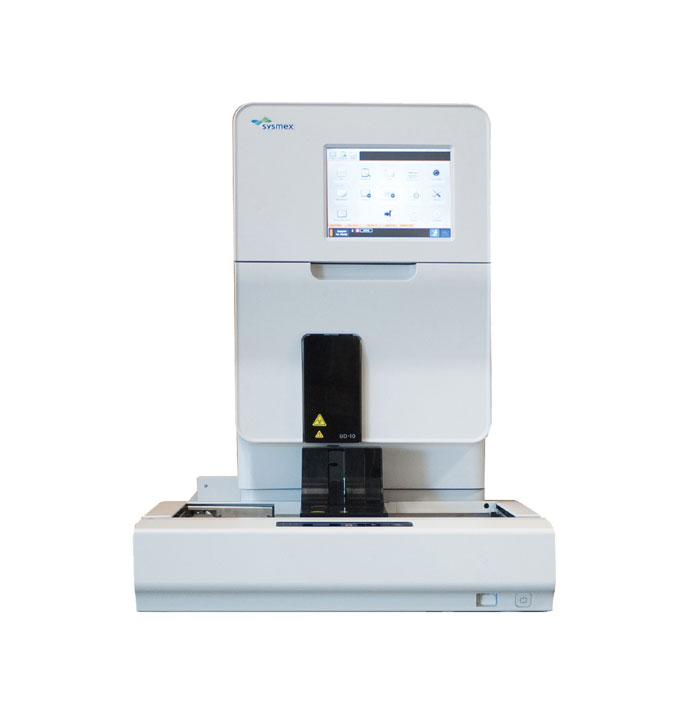

UD-10

Add to wishlist
Category:

UD-10

  • Complete analysis of urine in combination with the UF-5000/4000

  • Fully automated digital imaging

  • Gives a detailed view of urine particles

  • Particles can be classified into 8 different classes based upon size

Fully Automated Urine Particles Digital Imaging Device

Within the UN-Series, the UD-10 closes the total urinalysis workflow by capturing the particle images in urine samples. With its stage scanning technology, the abnormal results from previous chemical and sediment analysis can be visually confirmed with full automation.

Particles can be classified into eight different classes based on the size of particles. The images provide a detailed view of urine particles without performing a manual sediment or microscopy; the entire workflow can be processed automatically.

Particle images from the UD-10 can assist by differentiating abnormal or unclear results. By applying individual rule settings with the Urinalysis Work Area Information Management System (U-WAM), workflows can be modified to meet your needs.



Modular Concept Solution

UD-10 comes always in combination with UF-5000/4000 and U-WAM (Urinalysis Work Area Information Management System).

For a fully automated urinalysis workflow the UC-3500 can easily be connected.

Technology: Captures particles in urine by means of an image analysis method
Aspiration volume: 0.3 mL in sampler mode
0.3 mL in STAT mode
Minimum required volumes: 1.6 mL in sampler mode
0.6 mL in STAT mode
Throughput:
  • 50 samples/h (normal mode)
  • 30 samples/h (precise mode)
Parameters: 40 pictures per sample (normal mode)
80 pictures per sample (precise mode)
Measurement Principles:
  • Automatic focus adjustment
  • Cells are settling down on the bottom of imaging cell after aspiration
  • Moving CCD camera captures images with pulsed LED
Technology:
  • Captures particles in urine by means of an image analysis method
Parameters Class 1, Class 2, Class 3, Class 4, Class 5, Class 6, Class 7, Class 8
+ Features & Benefits

Fully Automated Urine Particles Digital Imaging Device

Within the UN-Series, the UD-10 closes the total urinalysis workflow by capturing the particle images in urine samples. With its stage scanning technology, the abnormal results from previous chemical and sediment analysis can be visually confirmed with full automation.

Particles can be classified into eight different classes based on the size of particles. The images provide a detailed view of urine particles without performing a manual sediment or microscopy; the entire workflow can be processed automatically.

Particle images from the UD-10 can assist by differentiating abnormal or unclear results. By applying individual rule settings with the Urinalysis Work Area Information Management System (U-WAM), workflows can be modified to meet your needs.



Modular Concept Solution

UD-10 comes always in combination with UF-5000/4000 and U-WAM (Urinalysis Work Area Information Management System).

For a fully automated urinalysis workflow the UC-3500 can easily be connected.

+ Specifications
Technology: Captures particles in urine by means of an image analysis method
Aspiration volume: 0.3 mL in sampler mode
0.3 mL in STAT mode
Minimum required volumes: 1.6 mL in sampler mode
0.6 mL in STAT mode
Throughput:
  • 50 samples/h (normal mode)
  • 30 samples/h (precise mode)
Parameters: 40 pictures per sample (normal mode)
80 pictures per sample (precise mode)
Measurement Principles:
  • Automatic focus adjustment
  • Cells are settling down on the bottom of imaging cell after aspiration
  • Moving CCD camera captures images with pulsed LED
Technology:
  • Captures particles in urine by means of an image analysis method
Parameters Class 1, Class 2, Class 3, Class 4, Class 5, Class 6, Class 7, Class 8
