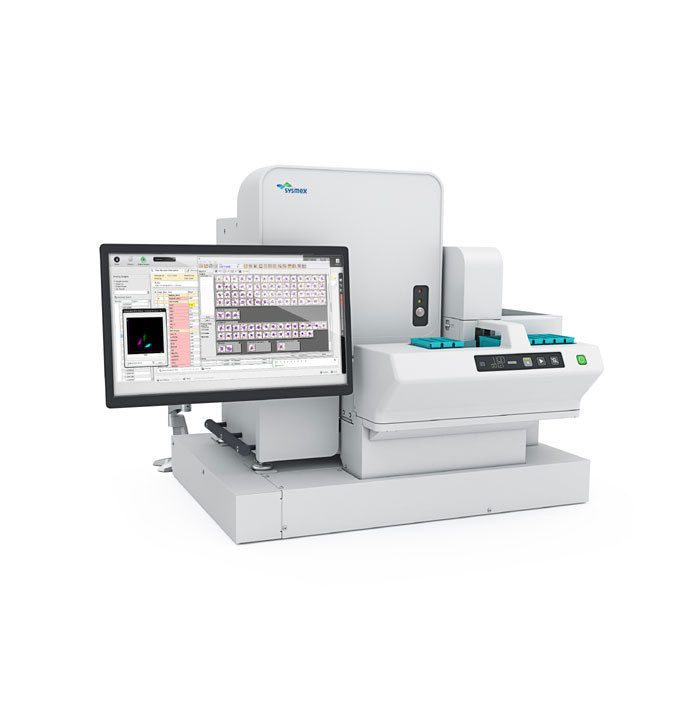

DI-60

Add to wishlist

Integrated Digital Morphology Solution: Integrated Digital Morphology Solution: The DI-60 is an optional module that can be integrated into the XN-systemisation line allowing cellular assessment thru an automated pre-classification and pre-characterisation of cells. With an automated cell image analysis, the DI-60 provides a more standardised differential results reducing subjectivity and allows efficient collaboration with real time access to cell images.

DI-60

The DI-60 compact integration platform performs WBC pre-classification, RBC pre-characterization and platelet estimation

  • Automated digital pre-classification and pre-characterization of cells

  • Digital scanning of the whole stained slide

  • Remote review applications for multi-expert referral and collaboration

  • Supports skill expansion via a comprehensive reference library and access to historical patient images and comments

  • Optional applications such as Body Fluid, Advanced RBC and Remote Review software

The Sysmex DI-60 is a digital cell imaging analyser that can be connected to the Sysmex XN-3000/XN-3100, XN-3100/ XN-9100 systems providing a fully integrated haematology solution that meets your laboratory’s needs. As part of the XN systemization portfolio, the DI-60 enhances not only the lab’s productivity but it also promotes consistency and standardization of the cell differential results thru an automated pre-classification and pre-characterization of cells.

It facilitates easy collaboration and consultation between morphology experts, creating flexible and cost-effective utilisation of staff and resources through the Sysmex remote review software.

Throughput
  • Peripheral Blood: Up to 30 slides/hour (100 WBC + RBC + PLT)
  • Body Fluid: based on 5x5mm area
  • Up to 40 cytospsin slides/hour (100 WBC 10x overview)
Technology Artificial Neural Network
Slide identification Barcode labelled slides
Storage capacity Up to 4000 slides per database
Supported Stains
  • Romanowsky stains
  • RAL MCDh stains
  • May Grünwald – Giemsa
  • Wright
  • Wright – Giemsa
WBC Pre-classification segmented and band neutrophils, lymphocytes, monocytes, eosinophils, basophils, metamyelocytes, myelocytes,promyelocytes, blasts, variant lymphocytes, plasma cells, non-WBC: smudge, artefacts, giant platelets, platelet clumps, erythroblasts
RBC Pre-characterisation aniso-, micro- and macrocytosis, poly- and hypochromasia, poikilocytosis
Body Fluid segmented neutrophils, eosinophils, lymphocytes, macrophages (incl. monocytes), basophils, Other
Slide Scan Scanning of user definable areas of aslide
Options
  • Sysmex Remote Review Software
  • Sysmex Body Fluid application
+ Features & Benefits

The Sysmex DI-60 is a digital cell imaging analyser that can be connected to the Sysmex XN-3000/XN-3100, XN-3100/ XN-9100 systems providing a fully integrated haematology solution that meets your laboratory’s needs. As part of the XN systemization portfolio, the DI-60 enhances not only the lab’s productivity but it also promotes consistency and standardization of the cell differential results thru an automated pre-classification and pre-characterization of cells.

It facilitates easy collaboration and consultation between morphology experts, creating flexible and cost-effective utilisation of staff and resources through the Sysmex remote review software.

+ Specifications
Throughput
  • Peripheral Blood: Up to 30 slides/hour (100 WBC + RBC + PLT)
  • Body Fluid: based on 5x5mm area
  • Up to 40 cytospsin slides/hour (100 WBC 10x overview)
Technology Artificial Neural Network
Slide identification Barcode labelled slides
Storage capacity Up to 4000 slides per database
Supported Stains
  • Romanowsky stains
  • RAL MCDh stains
  • May Grünwald – Giemsa
  • Wright
  • Wright – Giemsa
WBC Pre-classification segmented and band neutrophils, lymphocytes, monocytes, eosinophils, basophils, metamyelocytes, myelocytes,promyelocytes, blasts, variant lymphocytes, plasma cells, non-WBC: smudge, artefacts, giant platelets, platelet clumps, erythroblasts
RBC Pre-characterisation aniso-, micro- and macrocytosis, poly- and hypochromasia, poikilocytosis
Body Fluid segmented neutrophils, eosinophils, lymphocytes, macrophages (incl. monocytes), basophils, Other
Slide Scan Scanning of user definable areas of aslide
Options
  • Sysmex Remote Review Software
  • Sysmex Body Fluid application
+ Documents
