CyFlow Cube 8

Add to wishlist
Category:

Enquiry about CyFlow Cube 8

Enter the security code shown above

The CyFlow Cube 8 is a high-performance bench-top flow cytometer with a flexible choice of up to 4 light sources (8 optical parameters: up to 6 colours + FSC & SSC). Choose from our available light sources: 488nm Blue laser, 638nm Red laser, 405nm Violet laser, 532nm Green laser, 561nm Yellow laser, 594nm Orange laser and high-power UV-LED, or customise configurations up to 3 lasers and 1 high-power UV-LED.

CyFlow Cube 8

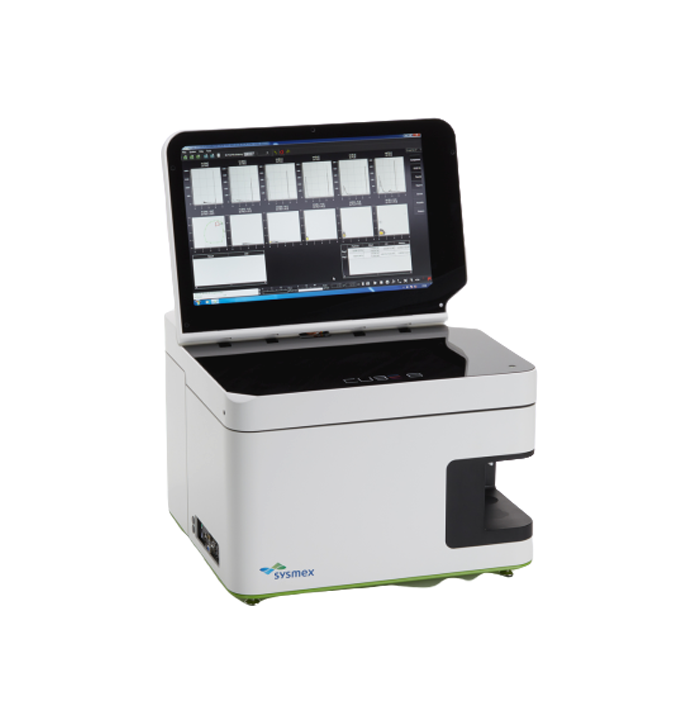

The CyFlow Cube 8 is a compact benchtop flow cytometer for the analysis of individual cells and microscopic particles with a high grade of integration. There are multiple configurations available to adjust to dedicated and specific applications.

Guaranteed ease of use operations to achieve fast and accurate results, effortlessly analysed through the CyFlow software.

Multiple applications availability

  • Ready-to-use reagents for multiple applications: ploidy and pollen viability
  • Adaptable for cell biology research (Research Use Only monoclonal antibodies)
  • Absolute cell and particle counting

Productivity and Efficiency

  • Optional auto-loading station (Robby 6 Autoloader)
  • Easy and quick sample preparation thanks to ready-to-use Sysmex Partec reagents
  • Results in less than 2 minutes
  • Alternative method to time-consuming methods (manual, PCR)
  • Compact and robust instrumentation enable measurement at spatially constrained locations

For more product information, please contact your local Sysmex agent.

  • Measurement Principle: flow cytometry – Quartz flow cuvette for laminar sample transport and hydrodynamic focusing
  • Up to 3 different light sources (laser or UV LED)
  • Completely closed fluidic system
  • Sample port with biosafety cleaning system
  • True Volumetric Absolute Counting based on mechanical volume measurement
  • Aspiration speed adjustable from 0.1µL to 20µL/s
  • Throughput: optional autoloading station for 96-wells or 120 test tubes.
  • Level sensors on waste bottles and sheath fluid

The CyFlow Sorter delivers closed, non-destructive cell and particle sorting withhigh purity. This Sorting option is available for the CyFlow Cube 8 and the CyFlow Space instruments. Optional cell sorting module add-on for CyFlow Cube 8, to sort cells of interest in total confidence.

Features & Benefits

  • Compact design allowing for easy placement under a hood to avoid biohazardous situations.
  • Combination of a flow chamber with a piezo element, including electric activation
  • Sort target cells or particles non-destructively with high yield and purity
  • Closed system allowing for smooth process with reduced mechanical stress

Download CyFlow Cube brochure here

Features & Benefits

Multiple applications availability

  • Ready-to-use reagents for multiple applications: ploidy and pollen viability
  • Adaptable for cell biology research (Research Use Only monoclonal antibodies)
  • Absolute cell and particle counting

Productivity and Efficiency

  • Optional auto-loading station (Robby 6 Autoloader)
  • Easy and quick sample preparation thanks to ready-to-use Sysmex Partec reagents
  • Results in less than 2 minutes
  • Alternative method to time-consuming methods (manual, PCR)
  • Compact and robust instrumentation enable measurement at spatially constrained locations

For more product information, please contact your local Sysmex agent.

Specifications
  • Measurement Principle: flow cytometry – Quartz flow cuvette for laminar sample transport and hydrodynamic focusing
  • Up to 3 different light sources (laser or UV LED)
  • Completely closed fluidic system
  • Sample port with biosafety cleaning system
  • True Volumetric Absolute Counting based on mechanical volume measurement
  • Aspiration speed adjustable from 0.1µL to 20µL/s
  • Throughput: optional autoloading station for 96-wells or 120 test tubes.
  • Level sensors on waste bottles and sheath fluid
CyFlow Cube 8 Sorter Module

The CyFlow Sorter delivers closed, non-destructive cell and particle sorting withhigh purity. This Sorting option is available for the CyFlow Cube 8 and the CyFlow Space instruments. Optional cell sorting module add-on for CyFlow Cube 8, to sort cells of interest in total confidence.

Features & Benefits

  • Compact design allowing for easy placement under a hood to avoid biohazardous situations.
  • Combination of a flow chamber with a piezo element, including electric activation
  • Sort target cells or particles non-destructively with high yield and purity
  • Closed system allowing for smooth process with reduced mechanical stress
Documents

Download CyFlow Cube brochure here
