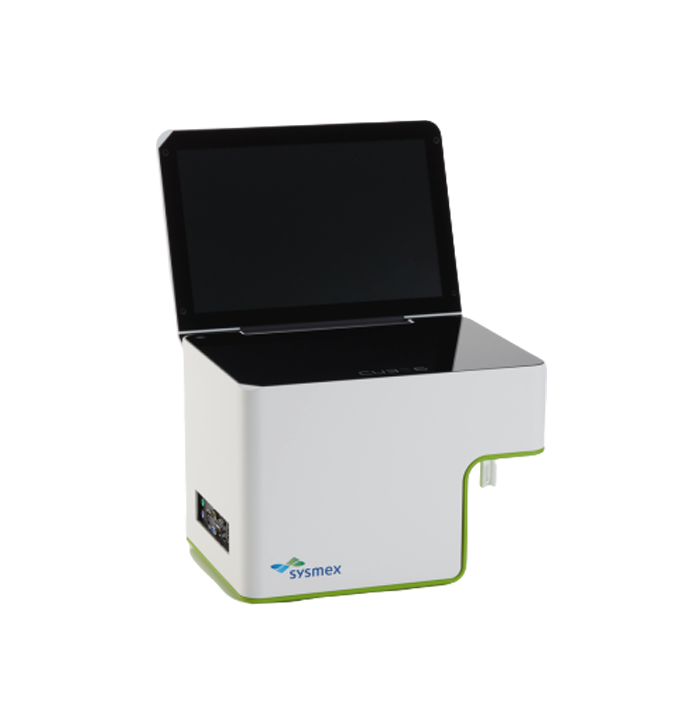

CyFlow Cube 6

Add to wishlist
Category:

The CyFlow Cube 6 is a high-performance bench-top flow cytometer with a flexible choice of up to 2 light sources (6 optical parameters: up to 4 colours + FSC & SSC), using a 488nm blue laser and/or a 638nm red laser with a maximum acquisition rate at 15,000 particles per second.

CyFlow Cube 6

The CyFlow Cube 6 is a compact benchtop flow cytometer for the analysis of individual cells and microscopic particles. There are multiple configurations available to adjust to dedicated and specific applications.

Guaranteed ease of use operations to achieve fast and accurate results and analysed effortlessly through the CyFlow software.

Multiple applications availability

  • Ready-to-use reagents for multiple applications
  • Absolute cell and particle counting

Productivity and Efficiency

  • Optional auto-loading station (Robby 6 Autoloader)
  • Easy and quick sample preparation thanks to ready-to-use Sysmex Partec reagents
  • Results in less than 2 minutes
  • Alternative method to time-consuming methods (manual counting, PCR)
  • Compact and robust instrumentation enables measurement at spatially constrained locations

For more product information, please contact your local Sysmex agent.

  • Measurement Principle: flow cytometry – quartz flow cuvette for laminar sample transport and hydrodynamic focusing
  • Up to 2 simultaneous lasers (488 nm Blue / 638nm Red)
  • Completely closed fluidic system
  • Sample port with biosafety cleaning system
  • True Volumetric Absolute Counting based on mechanical volume measurement
  • Aspiration speed adjustable from 0.1µL to 20µL/s
  • Liquid level sensors on waste bottles and sheath fluid to indicate replacement and cleaning
  • Throughput: optional autoloading station for 96-wells or 120 test tubes.
+ Features & Benefits

Multiple applications availability

  • Ready-to-use reagents for multiple applications
  • Absolute cell and particle counting

Productivity and Efficiency

  • Optional auto-loading station (Robby 6 Autoloader)
  • Easy and quick sample preparation thanks to ready-to-use Sysmex Partec reagents
  • Results in less than 2 minutes
  • Alternative method to time-consuming methods (manual counting, PCR)
  • Compact and robust instrumentation enables measurement at spatially constrained locations

For more product information, please contact your local Sysmex agent.

+ Specifications
  • Measurement Principle: flow cytometry – quartz flow cuvette for laminar sample transport and hydrodynamic focusing
  • Up to 2 simultaneous lasers (488 nm Blue / 638nm Red)
  • Completely closed fluidic system
  • Sample port with biosafety cleaning system
  • True Volumetric Absolute Counting based on mechanical volume measurement
  • Aspiration speed adjustable from 0.1µL to 20µL/s
  • Liquid level sensors on waste bottles and sheath fluid to indicate replacement and cleaning
  • Throughput: optional autoloading station for 96-wells or 120 test tubes.
